OPERATION AND PROGRAMMING

STLFAO1

Comfort Roof Control Module designed for

• Alfa Romeo Spider (Model 939)
• Ferrari California Model Year 2008+
• Ferrari California 30 Model Year 2012+
• Ferrari California T Model Year 2014+
• Ferrari 458 Spider
• Ferrari 488 Spider

Firmware v2.10 and up

Further information and manuals for all products can be found on our web site

w w w . m o d s 4 c a r s . c o m

PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING THIS PRODUCT.

We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility. We can NOT be held liable for any damage or injury caused by installing or using this product. Operation must be supervised and paid attention to in order to ensure that there are no objects or persons in range of moving parts due to the fact that top mechanics do not have pinch protection. Please study and be aware of the procedures to interrupt an ongoing operation in an emergency.

Important Information. READ BEFORE USING!
	PRINTING THIS MANUAL This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers. Activate the print preview and if necessary decrease the zoom level until all pages are shown correctly. ALL IMAGES CAN BE CLICKED FOR FULL SIZE in the browser.
	TROUBLE SHOOTING - NEED TO CONTACT US? If you run into any problems after installing the module, please go over the manual again in great detail, clicking every photo for full size! We now have a full Knowledge Base with Support Ticket system available online at www.mods4cars.com/support If you need to contact us, the best and fastest way to do so is by opening a support ticket there
	This module comes with our USB Field Upgrade and Configuration Port! We recommend connecting it to a computer BEFORE YOU INSTALL and using our support app "m4cconnect" to do a quick firmware update check. M4cconnect as well as all other information regarding USB update and configuration can be found at www.mods4cars.com/usb. You can even configure and activate your favorite module functions and settings on screen before the module is installed in the car! It is a good idea to permanently install the USB cable with the module in the car, leaving the computer plug in an easily accessible spot for later use with a Wifi/3G/4G connected laptop.

Detailed function description (Factory setting underlined)

Function 1 - MODULE MODE + MASTER SWITCH ( 0=OFF / 1=ON / 2=EXT / 3=EXP )
The module can quickly and easily be enabled and disabled using this function. It acts like a master switch. When disabled, the module becomes completely inactive and behaves as if it was not installed while keeping all other function settings intact for when it is re-enabled later. • Setting 1 is the regular operation mode with emphasis on safety. Turning the ignition on or off as well as hitting any button on the remote at any time during remote operation immediately stops an ongoing top operation. • Setting 2 is the extended operation mode with emphasis on convenience. Starting or stopping the engine will not stop a top operation and it is possible to lock or unlock the doors one time from the remote while the top is moving. • Setting 3 is the operation mode designed for responsible experts. It allows the doors to be locked and unlocked more than once. This can come in handy if after getting out and locking the doors something was forgotten in the car and needs to be retrieved while the top is still running. Settings 2 and 3 require extra responsibility and caution to avoid injury by moving top parts to passengers not expecting the top to continue running after the engine is turned off and due to the fact that the first key press on the remote to lock or unlock the doors (or continued toggling of the door locks) will not stop the top! To abort the operation, press unlock while the doors are unlocked or lock while they are locked. EXTREMELY IMPORTANT: In order to avoid problems with diagnostic tools and to avoid confusion or risk of injury by unexpected top movement, we urge you to ALWAYS DISABLE the module before taking the car in for routine maintenance or lending it to a third person! In case of any top malfunction NEVER take the car with the module still installed to an unsuspecting dealer! In such cases ALWAYS contact Mods4Cars for support first at www.mods4cars.com or completely uninstall the module before a dealer visit.

Function 1 - MODULE MODE + MASTER SWITCH ( 0=OFF / 1=ON / 2=EXT / 3=EXP )

The module can quickly and easily be enabled and disabled using this function. It acts like a master switch. When disabled, the module becomes completely inactive and behaves as if it was not installed while keeping all other function settings intact for when it is re-enabled later.

• Setting 1 is the regular operation mode with emphasis on safety. Turning the ignition on or off as well as hitting any button on the remote at any time during remote operation immediately stops an ongoing top operation.
• Setting 2 is the extended operation mode with emphasis on convenience. Starting or stopping the engine will not stop a top operation and it is possible to lock or unlock the doors one time from the remote while the top is moving.
• Setting 3 is the operation mode designed for responsible experts. It allows the doors to be locked and unlocked more than once. This can come in handy if after getting out and locking the doors something was forgotten in the car and needs to be retrieved while the top is still running.

Settings 2 and 3 require extra responsibility and caution to avoid injury by moving top parts to passengers not expecting the top to continue running after the engine is turned off and due to the fact that the first key press on the remote to lock or unlock the doors (or continued toggling of the door locks) will not stop the top! To abort the operation, press unlock while the doors are unlocked or lock while they are locked.

EXTREMELY IMPORTANT: In order to avoid problems with diagnostic tools and to avoid confusion or risk of injury by unexpected top movement, we urge you to ALWAYS DISABLE the module before taking the car in for routine maintenance or lending it to a third person! In case of any top malfunction NEVER take the car with the module still installed to an unsuspecting dealer! In such cases ALWAYS contact Mods4Cars for support first at www.mods4cars.com or completely uninstall the module before a dealer visit.

Function 2 - Console Switch One-Touch ( 0=OFF / 1=ON / 2=VALET )
This function allows full automatic top operation using the console switch. • Setting 1 enables One-Touch operation and comfort close for all windows. • Setting 2 disables opening of the top (Valet Mode), even from the remote! IMPORTANT: Setting 2 disables top operation completely! If the top unexpectedly does not work, check and make sure VALET mode is not turned on. Top operation with the console switch: • Holding down the switch (longer than 1 sec) in either direction will operate the top in manual mode for as long as the switch is held. • Tap open 1x: Open the top and bring the windows into the programmed position. • Tap open 2x: Open the top and bring the windows into the opposite position this one time. • Tap close 1x: Close top and windows. • Tap close 2x: Close only the top and leave the windows open. Comfort close for all windows: • Tap the top close switch while the top is already closed to roll all windows up. To interrupt an ongoing operation: Tap the console switch in any direction at any time - even if the top was started by remote!

Function 2 - Console Switch One-Touch ( 0=OFF / 1=ON / 2=VALET )

This function allows full automatic top operation using the console switch.

• Setting 1 enables One-Touch operation and comfort close for all windows.
• Setting 2 disables opening of the top (Valet Mode), even from the remote!

IMPORTANT: Setting 2 disables top operation completely! If the top unexpectedly does not work, check and make sure VALET mode is not turned on.

Top operation with the console switch:
• Holding down the switch (longer than 1 sec) in either direction will operate the top in manual mode for as long as the switch is held.
• Tap open 1x: Open the top and bring the windows into the programmed position.
• Tap open 2x: Open the top and bring the windows into the opposite position this one time.
• Tap close 1x: Close top and windows.
• Tap close 2x: Close only the top and leave the windows open.

Comfort close for all windows:
• Tap the top close switch while the top is already closed to roll all windows up.

To interrupt an ongoing operation: Tap the console switch in any direction at any time - even if the top was started by remote!

Function 3 - Maximum Speed ( 0=0 km/h / 1=10 km/h / 2=20 km/h / 3=30 km/h / 4=40 km/h )
This function determines the desired speed limit for top operation via console switch. • Setting 0 only allows roof operation while halted. • Setting 1 and up increase the speed for top operation in steps of 10km/h (~7mph). We recommend to keep the speed as low as possible and only operate the top on even and smooth street surfaces! Once the top is started within the programmed speed limit, it will continue running, even if the speed later exceeds the limit during the top operation! IMPORTANT: For technical reasons it is NOT possible to control the top while the car is in motion on the Ferrari California. The setting should be left at 0 (Standstill).

Function 3 - Maximum Speed ( 0=0 km/h / 1=10 km/h / 2=20 km/h / 3=30 km/h / 4=40 km/h )

This function determines the desired speed limit for top operation via console switch.

• Setting 0 only allows roof operation while halted.
• Setting 1 and up increase the speed for top operation in steps of 10km/h (~7mph).

We recommend to keep the speed as low as possible and only operate the top on even and smooth street surfaces!
Once the top is started within the programmed speed limit, it will continue running, even if the speed later exceeds the limit during the top operation!

IMPORTANT: For technical reasons it is NOT possible to control the top while the car is in motion on the Ferrari California. The setting should be left at 0 (Standstill).

Function 4 - Remote Top ( 0=OFF / 1=ON )
This function allows full automatic top operation with the original remote fob by pressing the lock and unlock buttons. • Setting 1 allows opening and closing of the top by tapping the unlock and lock buttons on the remote multiple times. Top operation with the remote fob using TAPS: • Tap unlock 3x in 1 sec intervals: Open the top and bring the windows into the programmed position. • Tap unlock 4x in 1 sec intervals: Open the top and bring the windows into the opposite position this one time. • Tap lock 3x in 1 sec intervals: Close top and windows. (Only Ferrari 458 and 488) • Tap lock 4x in 1 sec intervals: Close only the top while leaving the windows down. (Only Ferrari 458 and 488) • Tap unlock 3x in 1 sec intervals: Close top and windows. (Ferrari California) • Tap unlock 4x in 1 sec intervals: Close only the top while leaving the windows down. (Ferrari California) PLEASE NOTE: Due to technical limitations on the Ferrari California it is not possible to close the top using the lock sequences as that will trigger the alarm and it is not possible to activate the top while driving. To interrupt an ongoing operation: Tap unlock or lock again. IMPORTANT: Keep in mind that Extended and Expert modes allow one time change (or multiple changes) of the door locks! In such case a second key press on the same button will be necessary to stop the top! IMPORTANT: On the Ferraris there is a "dead time" of about 5 seconds right after locking or unlocking the car. In order to use the remote, first lock or unlock the car, wait for a bit and then enter the desired sequence. Also the setting for unlocking by remote should be set to all doors, not just driver's door. The first tap on the unlock button should unlock both doors.

Function 4 - Remote Top ( 0=OFF / 1=ON )

This function allows full automatic top operation with the original remote fob by pressing the lock and unlock buttons.

• Setting 1 allows opening and closing of the top by tapping the unlock and lock buttons on the remote multiple times.

Top operation with the remote fob using TAPS:
• Tap unlock 3x in 1 sec intervals: Open the top and bring the windows into the programmed position.
• Tap unlock 4x in 1 sec intervals: Open the top and bring the windows into the opposite position this one time.
• Tap lock 3x in 1 sec intervals: Close top and windows. (Only Ferrari 458 and 488)
• Tap lock 4x in 1 sec intervals: Close only the top while leaving the windows down. (Only Ferrari 458 and 488)
• Tap unlock 3x in 1 sec intervals: Close top and windows. (Ferrari California)
• Tap unlock 4x in 1 sec intervals: Close only the top while leaving the windows down. (Ferrari California)

PLEASE NOTE: Due to technical limitations on the Ferrari California it is not possible to close the top using the lock sequences as that will trigger the alarm and it is not possible to activate the top while driving.

To interrupt an ongoing operation: Tap unlock or lock again. IMPORTANT: Keep in mind that Extended and Expert modes allow one time change (or multiple changes) of the door locks! In such case a second key press on the same button will be necessary to stop the top!

IMPORTANT: On the Ferraris there is a "dead time" of about 5 seconds right after locking or unlocking the car. In order to use the remote, first lock or unlock the car, wait for a bit and then enter the desired sequence.
Also the setting for unlocking by remote should be set to all doors, not just driver's door. The first tap on the unlock button should unlock both doors.

Function 5 - Remote Windows ( 0=OFF / 1=ON )
This function allows separate control of the windows with the original remote fob by pressing the lock and unlock buttons. • Setting 1 allows opening and closing of the windows by tapping the unlock and lock buttons on the remote multiple times. Window operation with the remote fob using TAPS: • Tap unlock 2x in 1 sec intervals: Open all windows. • Tap lock 2x in 1 sec intervals: Close all windows. IMPORTANT: On the Ferraris there is a "dead time" of about 5 seconds right after locking or unlocking the car. In order to use the remote, first lock or unlock the car, wait for a bit and then enter the desired sequence.

Function 5 - Remote Windows ( 0=OFF / 1=ON )

This function allows separate control of the windows with the original remote fob by pressing the lock and unlock buttons.

• Setting 1 allows opening and closing of the windows by tapping the unlock and lock buttons on the remote multiple times.

Window operation with the remote fob using TAPS:
• Tap unlock 2x in 1 sec intervals: Open all windows.
• Tap lock 2x in 1 sec intervals: Close all windows.

IMPORTANT: On the Ferraris there is a "dead time" of about 5 seconds right after locking or unlocking the car. In order to use the remote, first lock or unlock the car, wait for a bit and then enter the desired sequence.

Function 6 - Windows up after opening top ( 0=NONE / 1=FRONT / 2=ALL )
This function determines the position of the windows after an automatic top opening run. • Setting 0 leaves all windows down. • Setting 1 raises the front windows only. • Setting 2 raises all windows. Due to the absence of rear windows, settings 1 and 2 produce the same result on the Ferrari 458 and 488.

Programming
	This module offers several different functions, each with several settings. All functions and settings are described in detail above and a quick reference table (matrix) can be found at the end of this manual. We recommend printing the matrix and storing it in the glove box! To activate the programming mode, turn the ignition fully ON (no need to start the engine), then hold down the convertible top switch (1) in the direction the top is already in (open when the top is open, close when the top is closed) until both blinker arrows in the cluster light up. Now let go. The module shows the current function via the left arrow (2) and that function's setting via right arrow (3). As an example, the left arrow blinks 1x and the right arrow blinks 2x: Function 1 is currently set to setting 2. To select the function, tap the top switch briefly. To change the setting of the selected function, hold the switch for about 1 sec. A brief tap on the top open switch advances to the next function, a brief tap on the top close switch returns to the last one. After reading the current function and setting via the blinker signals, a long tap on the top open switch increases the setting while a long tap on the top close switch decreases it. To end programming mode, either turn the ignition off or hold down the top switch in either direction for a longer time (about 5 sec) until both arrows light up. Programming mode also terminates automatically after 60 sec. of inactivity.

Programming

This module offers several different functions, each with several settings. All functions and settings are described in detail above and a quick reference table (matrix) can be found at the end of this manual. We recommend printing the matrix and storing it in the glove box!

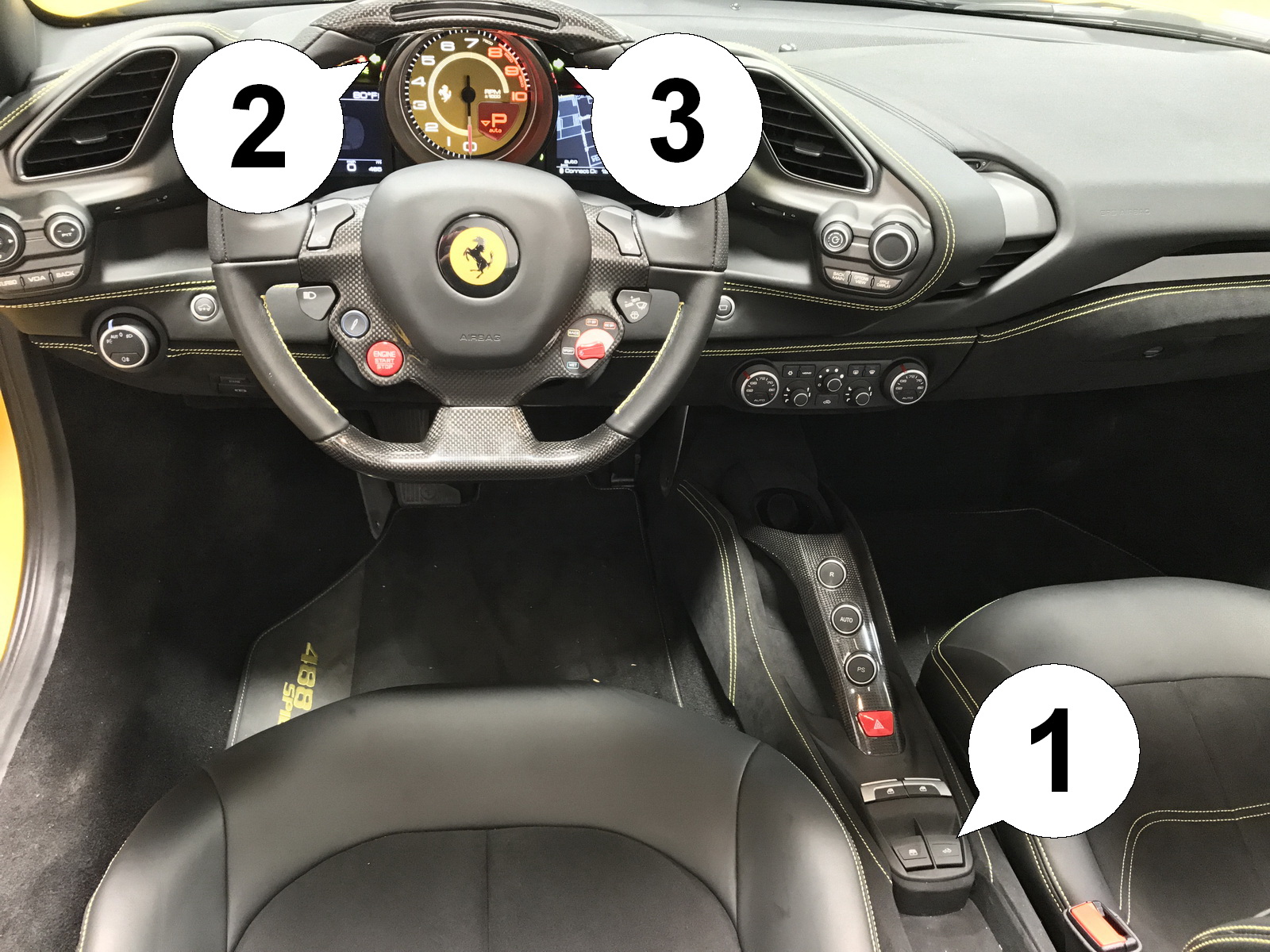

To activate the programming mode, turn the ignition fully ON (no need to start the engine), then hold down the convertible top switch (1) in the direction the top is already in (open when the top is open, close when the top is closed) until both blinker arrows in the cluster light up. Now let go.
The module shows the current function via the left arrow (2) and that function's setting via right arrow (3). As an example, the left arrow blinks 1x and the right arrow blinks 2x: Function 1 is currently set to setting 2.
To select the function, tap the top switch briefly. To change the setting of the selected function, hold the switch for about 1 sec. A brief tap on the top open switch advances to the next function, a brief tap on the top close switch returns to the last one. After reading the current function and setting via the blinker signals, a long tap on the top open switch increases the setting while a long tap on the top close switch decreases it.

To end programming mode, either turn the ignition off or hold down the top switch in either direction for a longer time (about 5 sec) until both arrows light up. Programming mode also terminates automatically after 60 sec. of inactivity.

Function/Setting Matrix (green fields are defaults)
Product: STLFAO1 - SmartTOP for Alfa Romeo Spider (939) and Ferrari 458/488/California Firmware: v2.10 and up
	SETTING 0	SETTING 1	SETTING 2	SETTING 3	SETTING 4
Function 1	OFF	ON	EXT	EXP
MODULE MODE + MASTER SWITCH	Module Disabled	Module Enabled	Extended Mode READ MANUAL!	Expert Mode READ MANUAL!
Function 2	OFF	ON	VALET
Console Switch One-Touch	Factory behavior	One-Touch operation	Valet Mode
Function 3	0 km/h	10 km/h	20 km/h	30 km/h	40 km/h
Maximum Speed	Only while halted	10 km/h (~7mph)	20 km/h (~13mph)	30 km/h (~19mph)	40 km/h (~25mph)
Function 4	OFF	ON
Remote Top	No remote functions	Enabled
Function 5	OFF	ON
Remote Windows	No remote functions	Enabled
Function 6	NONE	FRONT	ALL
Windows up after opening top	All windows down	Front windows up	All windows up
