INSTALLATION


STLFPT1

Comfort Roof Control Module for

  • Peugeot 207cc

    v1.0


    • Further information and manuals for all products can be found on our web site

    w w w . m o d s 4 c a r s . c o m


    We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility. We can NOT be held liable for any damage or injury caused by installing or using this product.
    PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING THIS PRODUCT.
    Important Information. READ BEFORE INSTALLING!
    PRINTING THIS MANUAL
    This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers.

    Activate the print preview and if necessary decrease the zoom level until all pages are shown correctly.

    ALL IMAGES CAN BE CLICKED FOR FULL SIZE in the browser.
    TROUBLE SHOOTING - NEED TO CONTACT US?
    If you run into any problems after installing the module, please go over the manual again in great detail, clicking every photo for full size!
    We now have a full Knowledge Base with Support Ticket system available online at www.mods4cars.com/support

    If you need to contact us, the best and fastest way to do so is by opening a support ticket there

    This module comes with our USB Field Upgrade and Configuration Port! We recommend connecting it to a computer BEFORE YOU INSTALL and using our support app "m4cconnect" to do a quick firmware update check. M4cconnect as well as all other information regarding USB update and configuration can be found at www.mods4cars.com/usb. You can even configure and activate your favorite module functions and settings on screen before the module is installed in the car! It is a good idea to permanently install the USB cable with the module in the car, leaving the computer plug in an easily accessible spot for later use with a Wifi/3G/4G connected laptop.
    IMPORTANT TROUBLESHOOTING TIPS

    If the top does not work properly or at all after installing the module, these tips can be very helpful:

    • 1) Turn Function 1 (Main Switch) off (Setting 0). The module will be completely passive. If the problem still persists and the top won't work, check all connections. Please also check the green DATA LED on the module!

    • 2) Function 2 now has a valet mode (Setting 2) on many modules. Valet mode completely disables opening of the top. Check the setting for function 2 and make sure the module is NOT in valet mode!

    IMPORTANT: Not all modules have the valet mode! Please check the Operation and Programming Manual!
    FUNCTION OF THE DATA LED

    The DATA LED shows the module status and helps troubleshooting issues during installation:

    • When the ignition is ON: The LED should BLINK (flash) in a regular pattern (about 1x per second). This indicates that the module is receiving data and should work OK.

    • When the ignition is OFF: The LED should BLINK (flash) as long as the data bus is still active and turn off after a while (max 5 min) indicating that the car has entered stand-by (sleep) mode.

    • If the LED is permanently lit with the ignition ON, the module is NOT receiving data from the top controller and all connectors should be checked.

    • If the LED does NOT light up at all when turning the ignition ON, the module is either not getting power or not receiving ANY data. All connectors should be checked.
    Installation - Steps 1-3

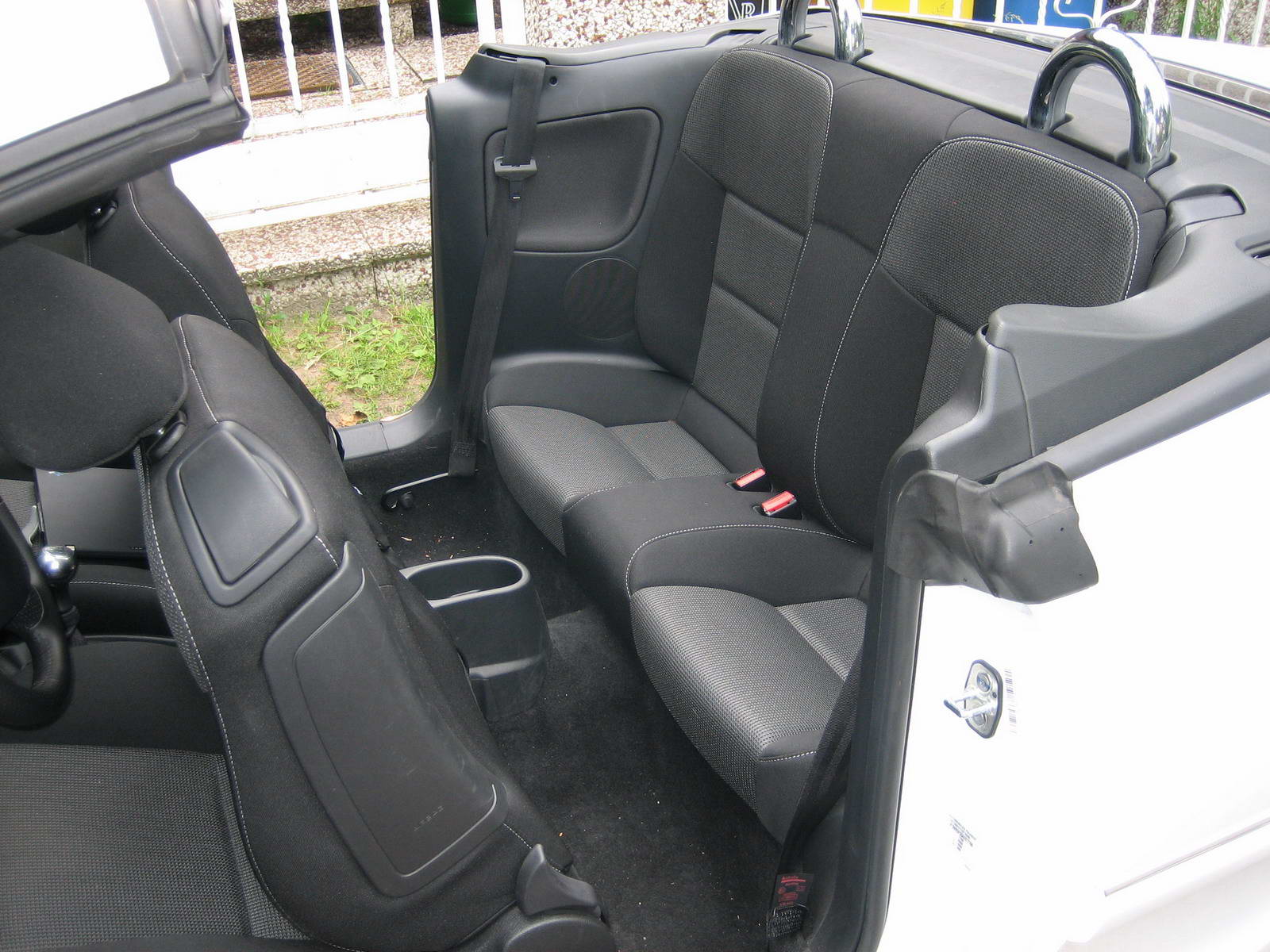

    1. Open the convertible top for better access. IMPORTANT: Turn off ignition and pull key out before continuing! Move both front seats all the way up.

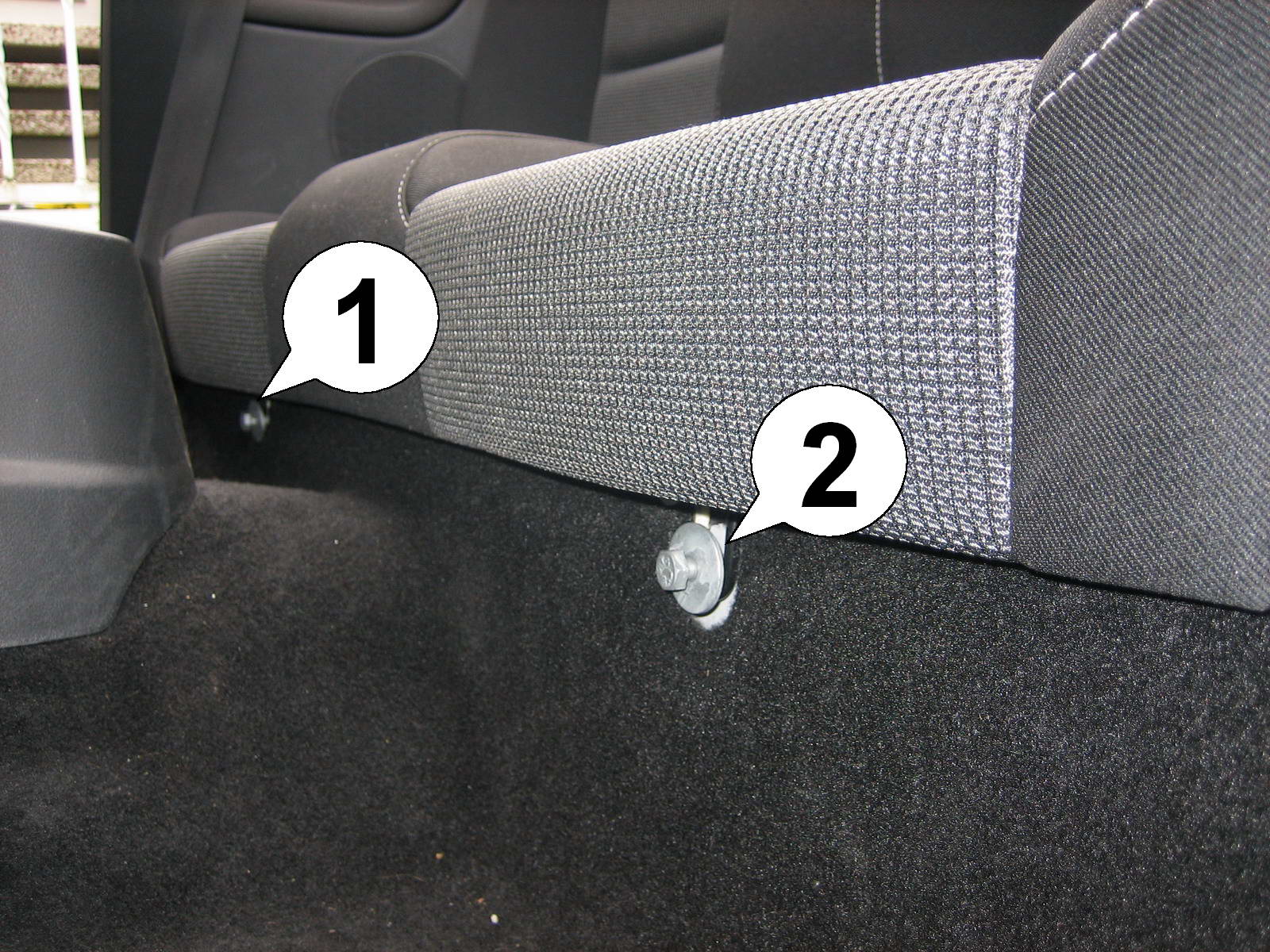

    2. Take the back seat out by first removing screws (1) and (2) and then pulling up hard and forward.
    3. Take the back rest out by removing the screws (1) and (2) and then pulling straight up.
    Installation - Steps 4-6

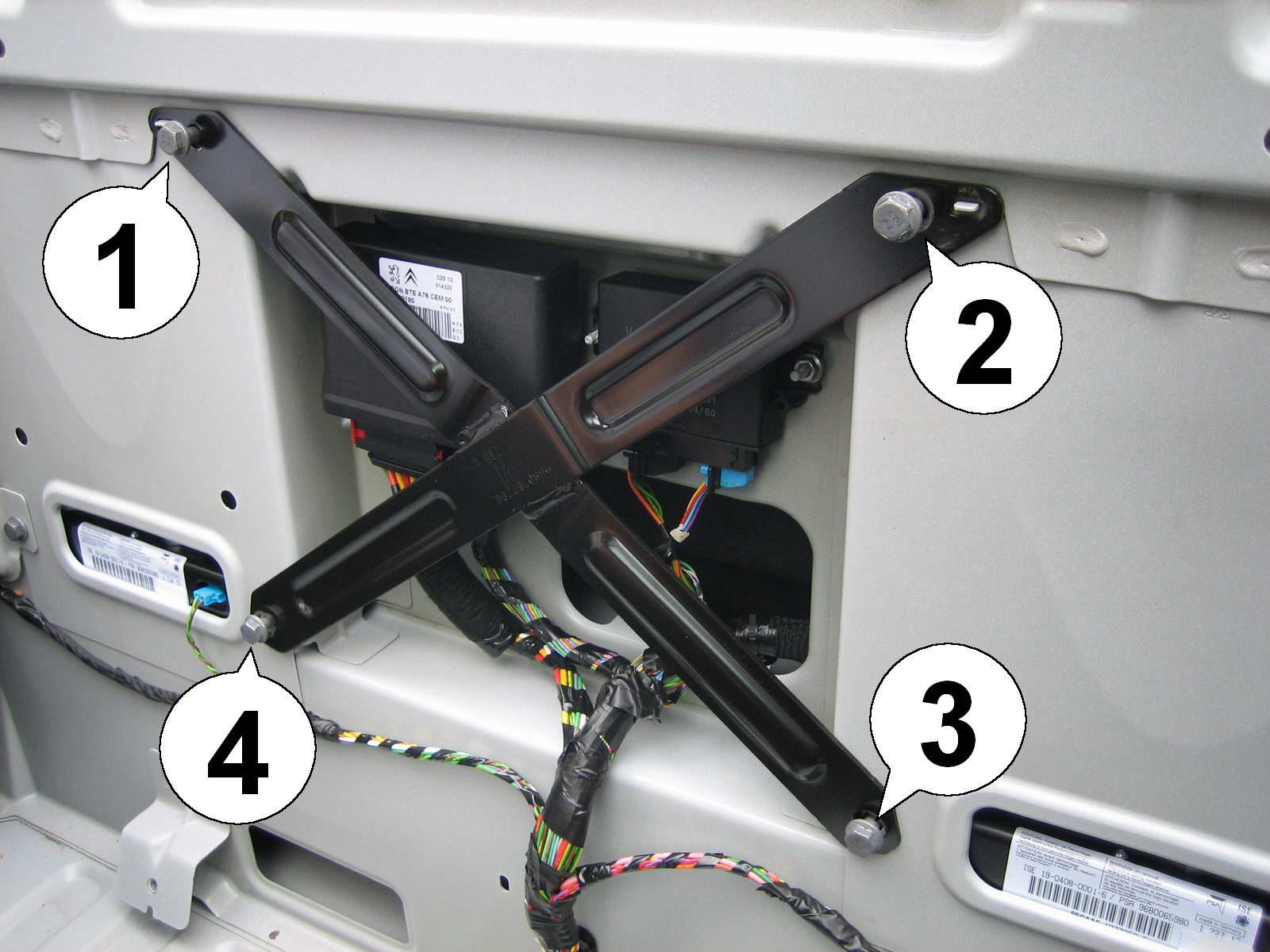

    4. Remove screws (1) through (4) to gain access to the convertible top controller.

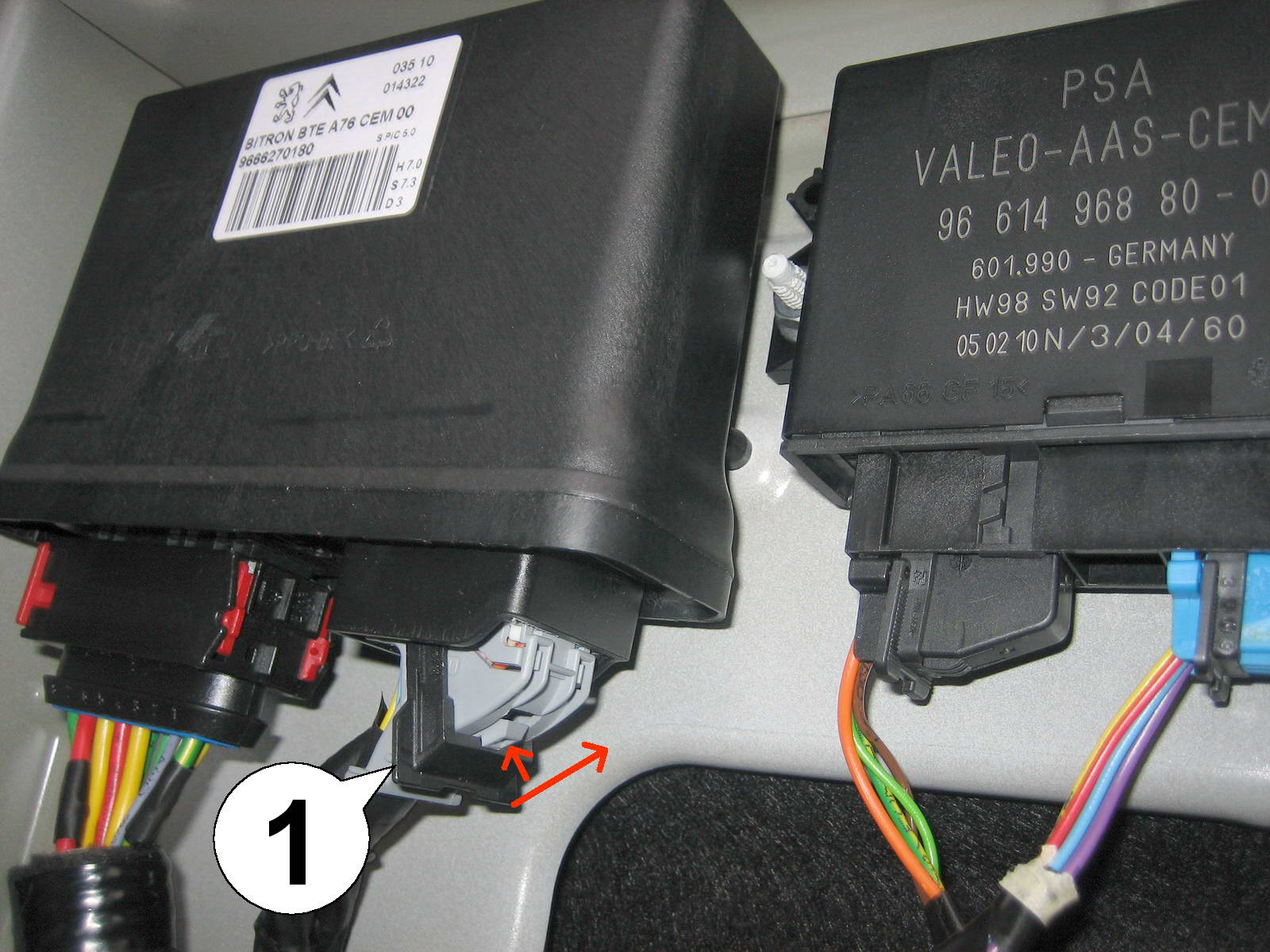

    5. Remove grey plug by pushing in the small latch, then moving the lever (1) over to the right to eject the plug.

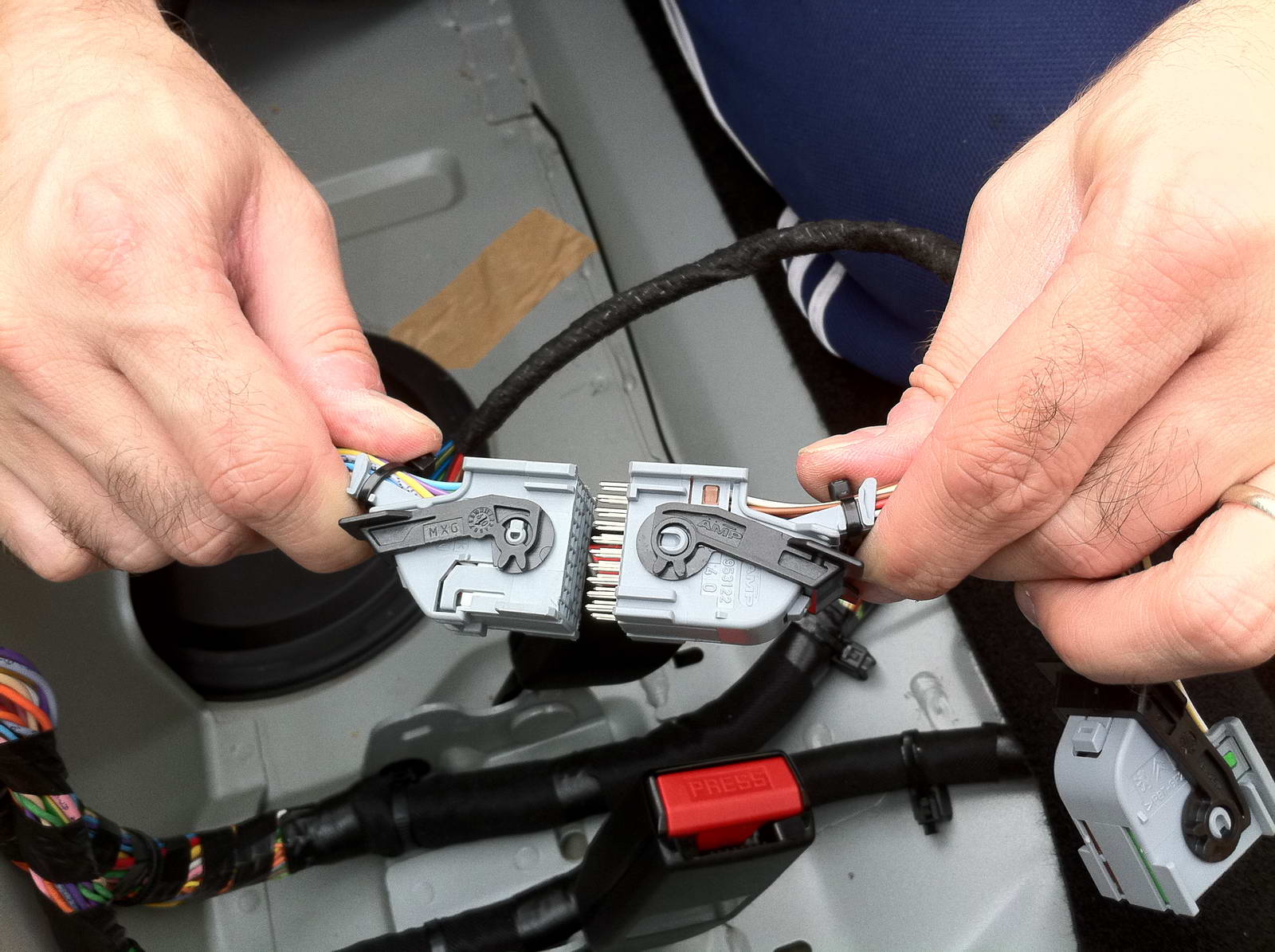

    6. Connect the grey plug with the counterpart on the smartTOP wiring harness exactly as shown.
    Installation - Steps 7-9

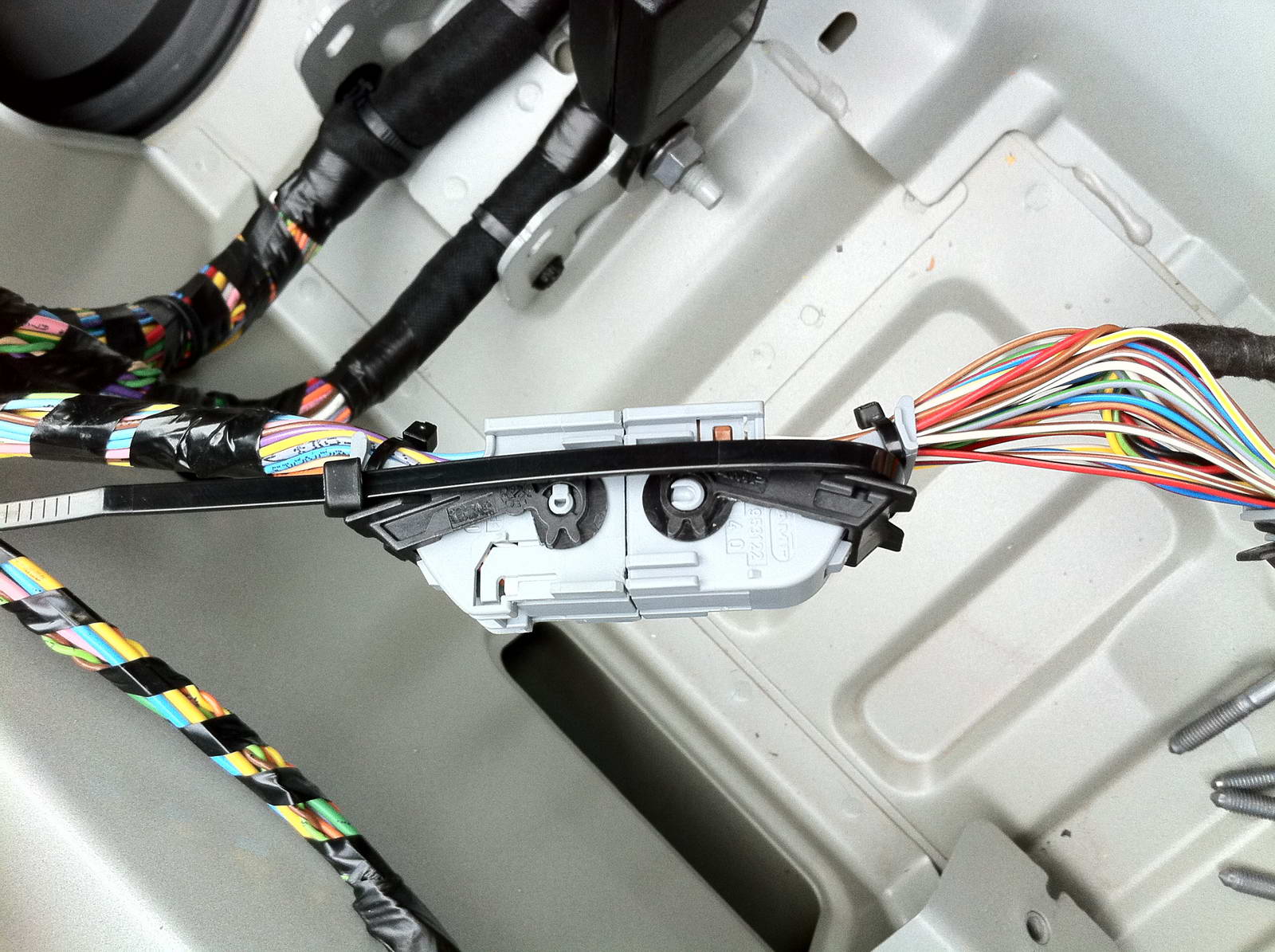

    7. Secure the connection with the supplied zip-tie as shown. If the plugs need to be disconnected at a later time, simply flip one of the black levers over to release the tie, which subsequently can be reused.

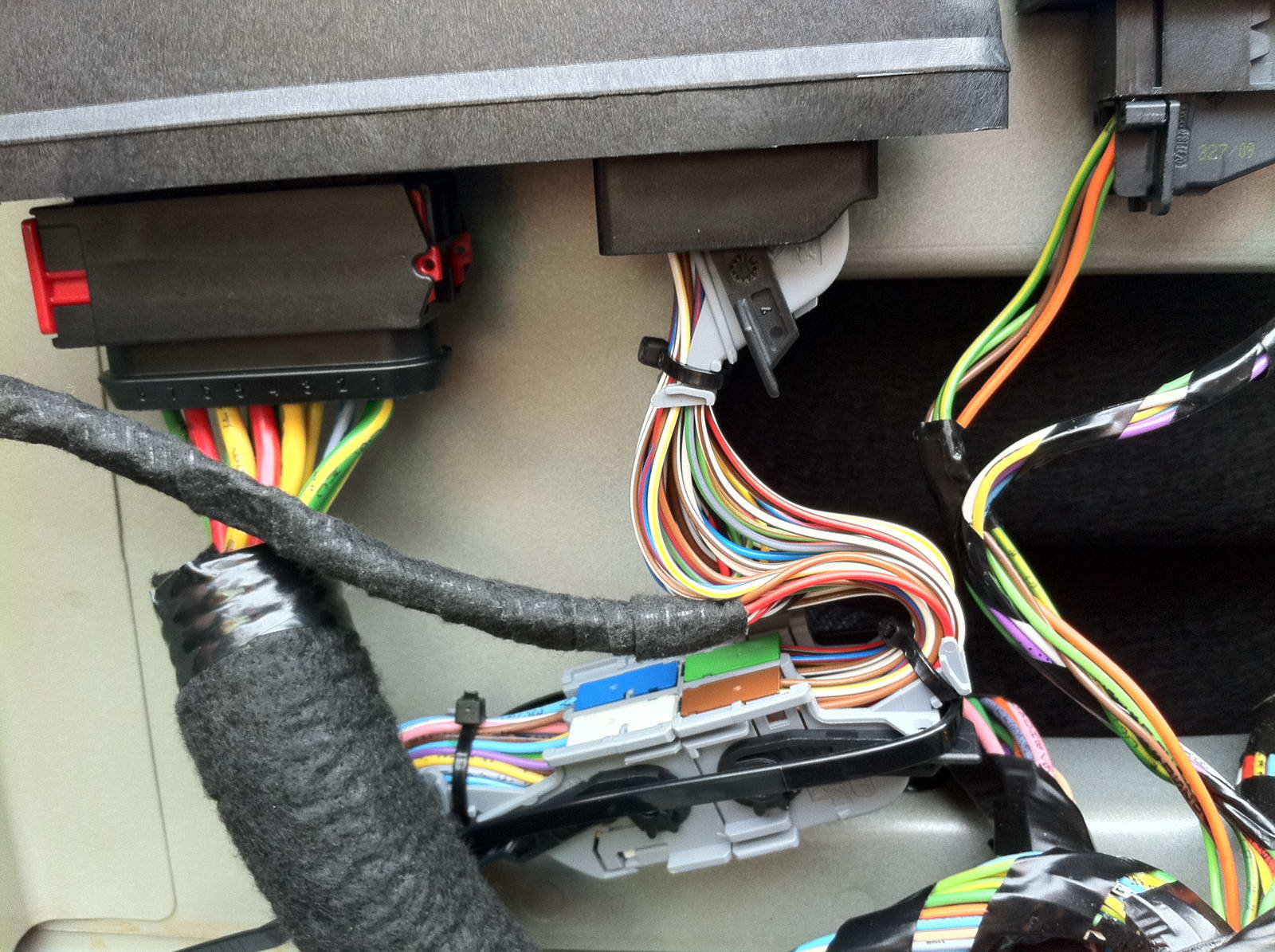

    8. Connect the other plug to the top control unit and secure it with the black locking lever.

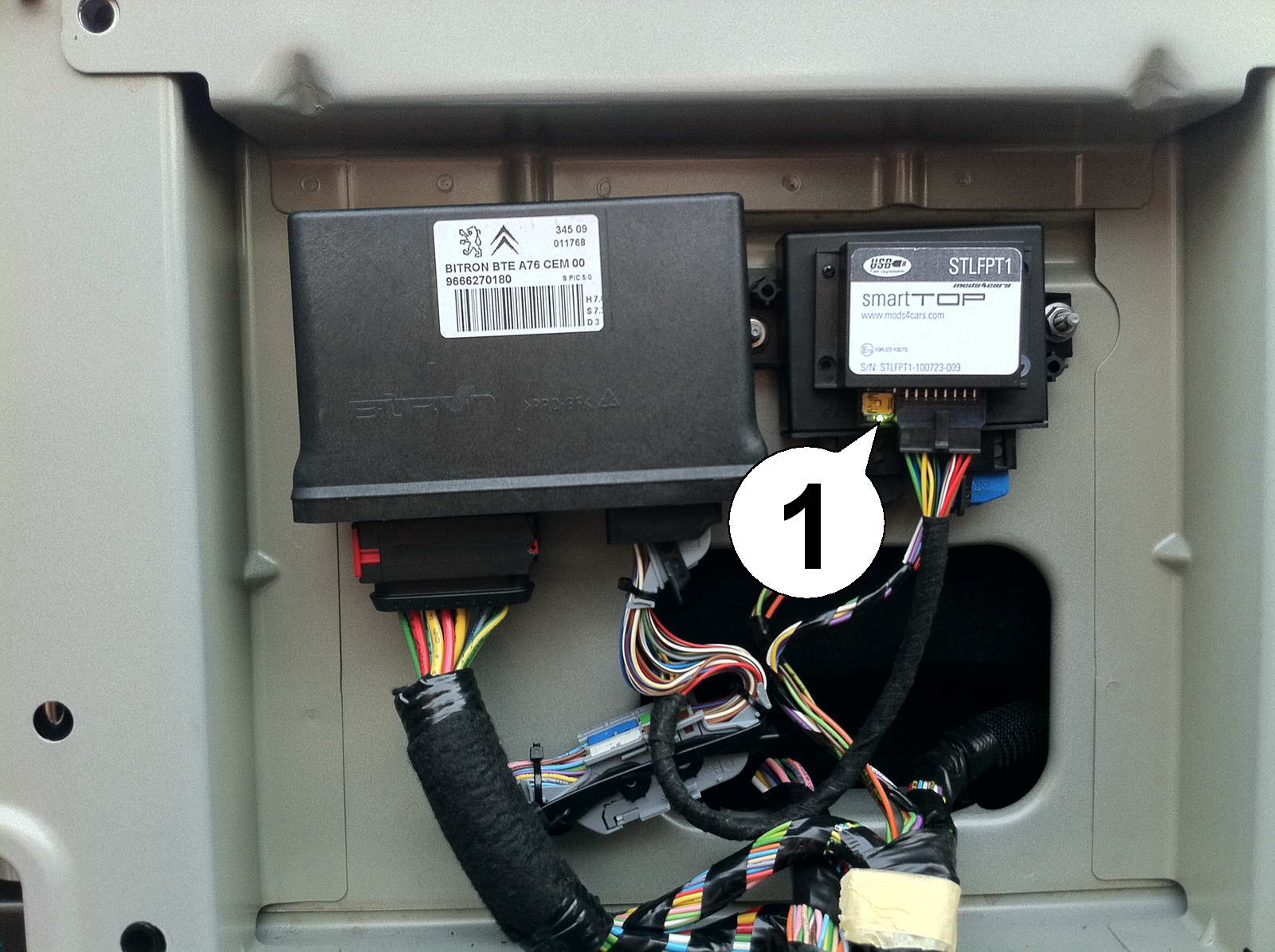

    9. Attach the module using the supplied velcro pad as shown. If desired, connect the USB cable and run it under the seat for easy access in case of a later module update via laptop. Lastly, tap the unlock button on the remote and monitor the green LED (1) on the module. If it flashes, everything is installed correctly. Put everything back together in reverse order. Done! Now program the module's functions and settings according to the operation and programming manual.
